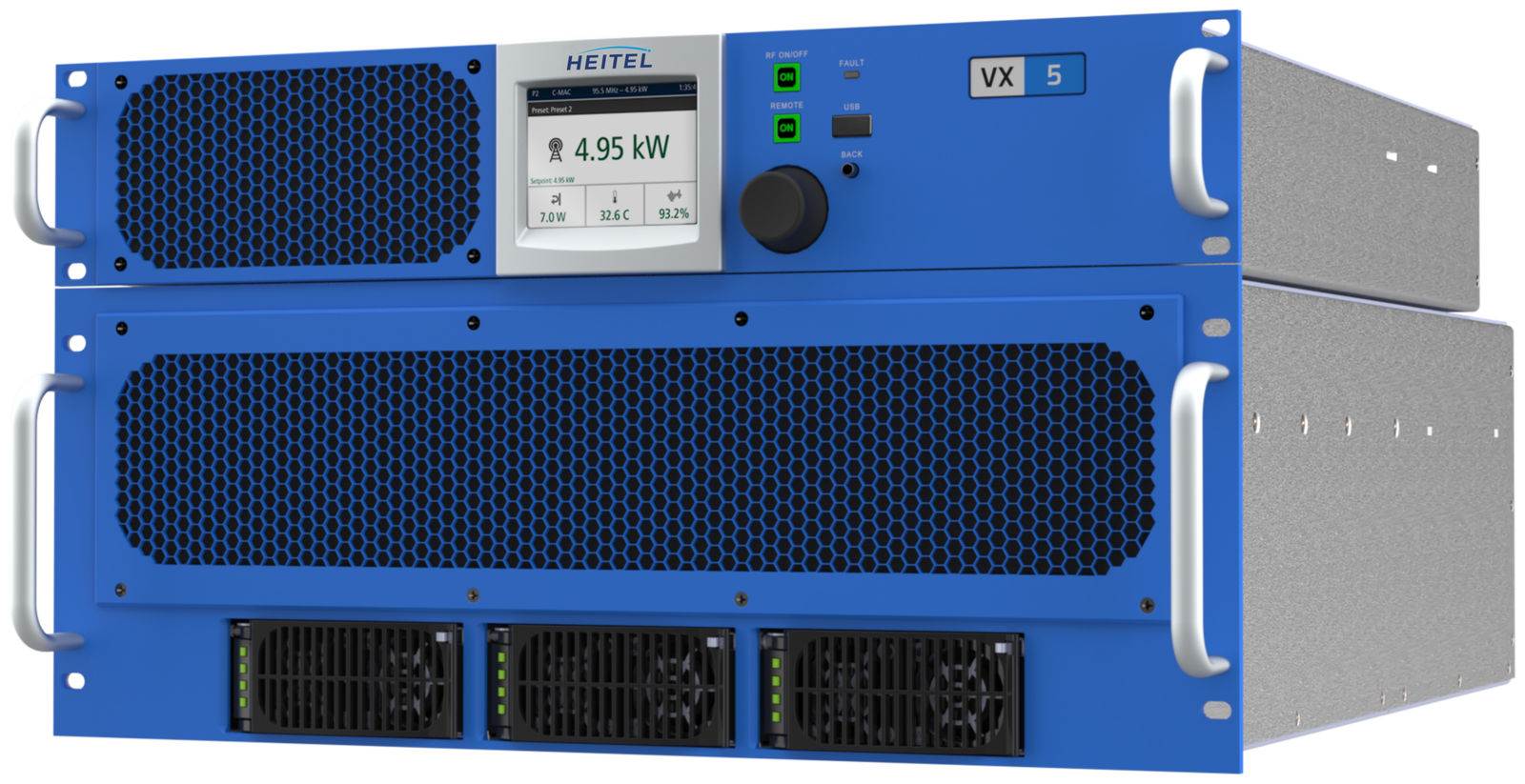

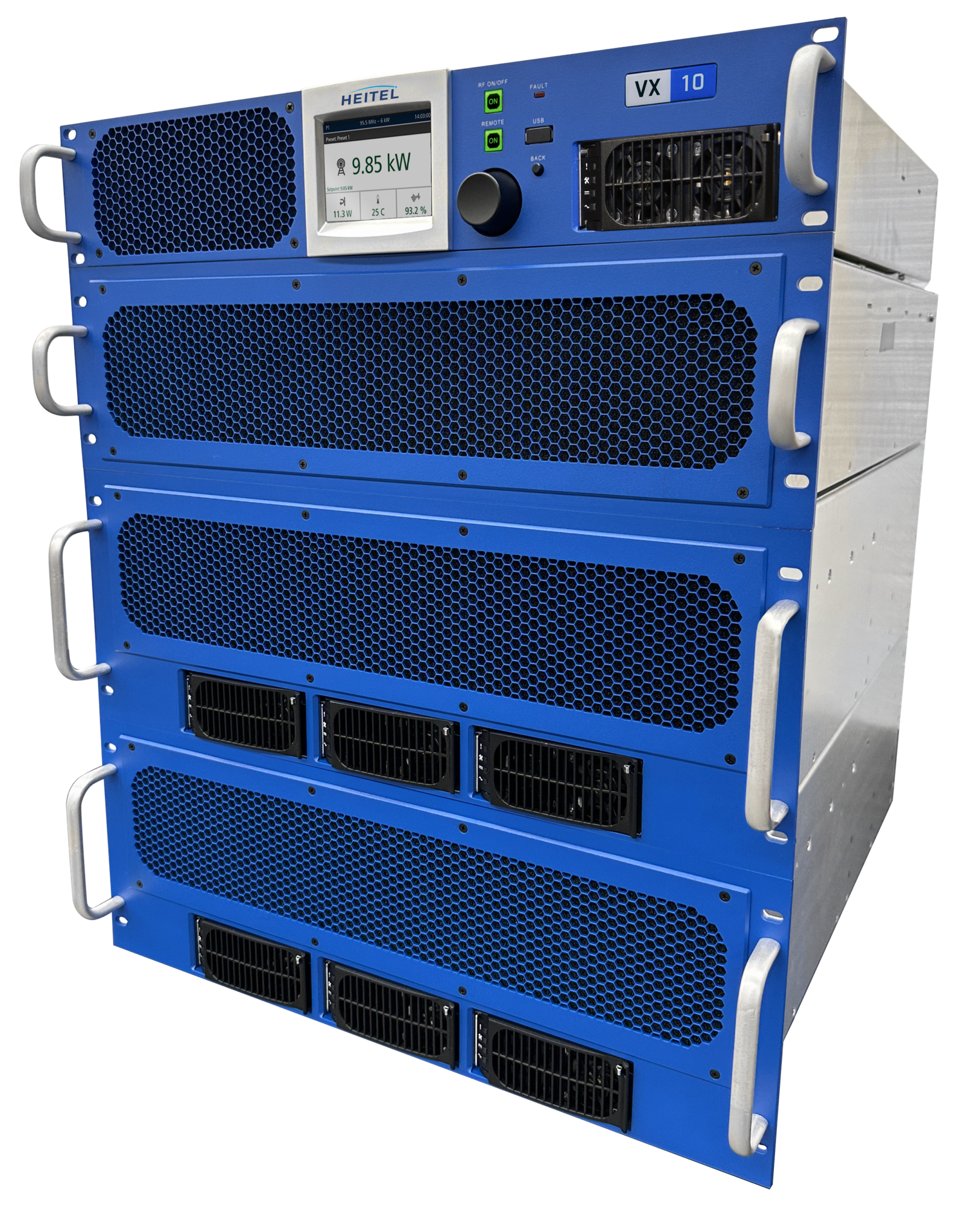

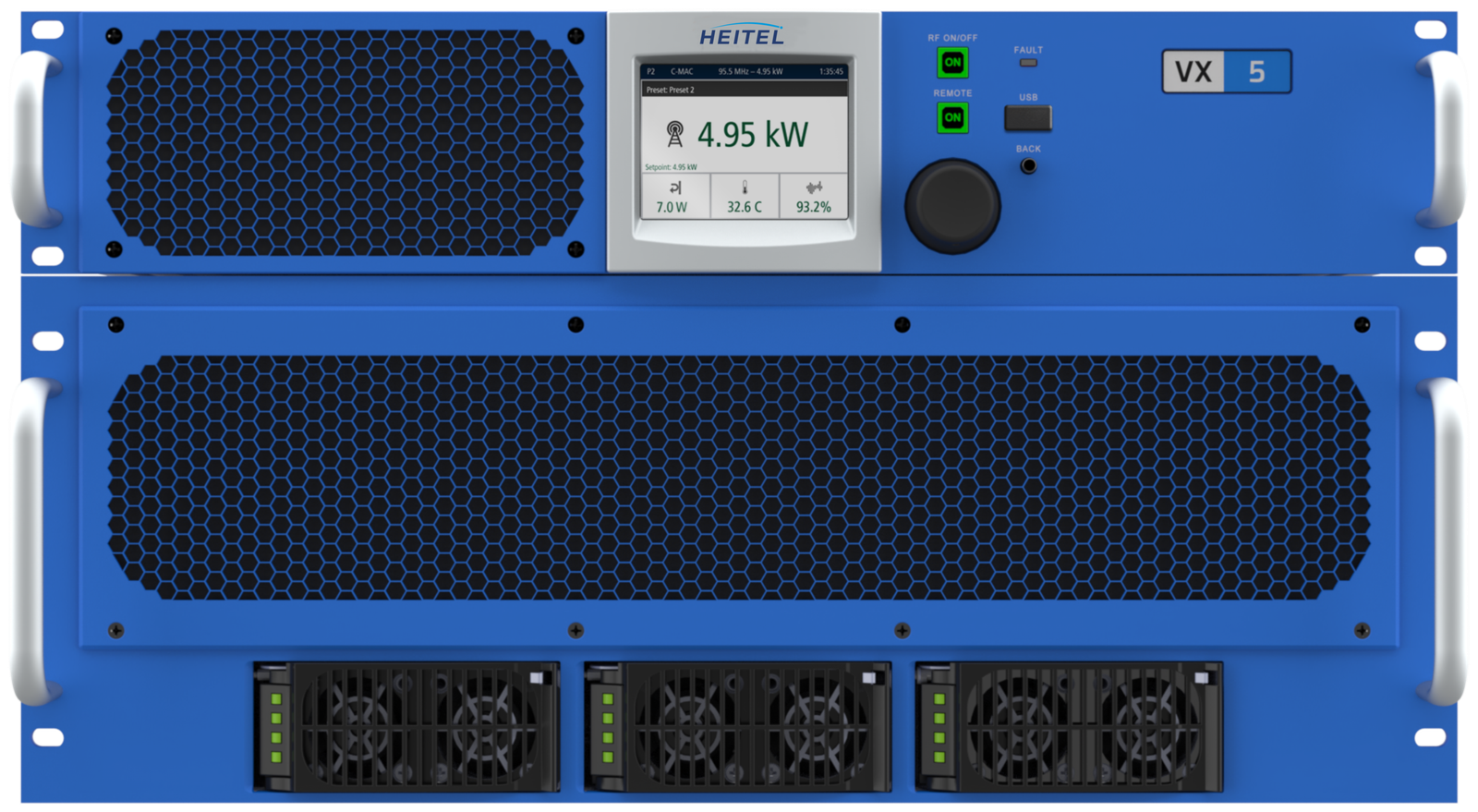

VX High Power.
High-power FM transmitters engineered for professional broadcast applications, combining compact architecture, high power density, serviceability and reliable continuous operation.
Built for demanding broadcast.
Solid-state FM transmitters designed for high-power broadcast applications, combining high power density, maintainability, flexible system architecture and reliable continuous operation across the VX3 to VX10 range.
Remote Control
HTML5 AUI provides remote control and monitoring from desktop, tablet and smartphone, with operating data and system status.
Serviceability
Service-focused architecture with replaceable power amplifier components, accessible filtration and simplified maintenance.
Redundancy
Automatic audio input failover with support for main/standby and N+1 transmitter configurations.
Local Interface
Full-color 3.5″ TFT display with rotary navigation, dedicated RF and remote controls, and USB connectivity.
| Model | VX3 | VX3.5 | VX4 | VX5 | VX6 | VX8 | VX10 |
|---|---|---|---|---|---|---|---|
| Rated Power | 3 kW | 3.5 kW | 4 kW | 5 kW | 6 kW | 8 kW | 10 kW |
| Output Range | 300–3300 W | 350–3850 W | 400–4400 W | 500–5500 W | 600–6300 W | 800–8800 W | 1000–11000 W |
| Typical Efficiency | 70% | 72% | 73% | 75% | 75% | 71% | 72% |
| Form Factor | 6 RU | 6 RU | 6 RU | 6 RU | 6 RU | 13 RU | 13 RU |
VX3–VX6 Specification Sheet
Planning a high-power FM broadcasting project?
Our team can help select the right VX transmitter and configuration for your broadcasting requirements and infrastructure.
