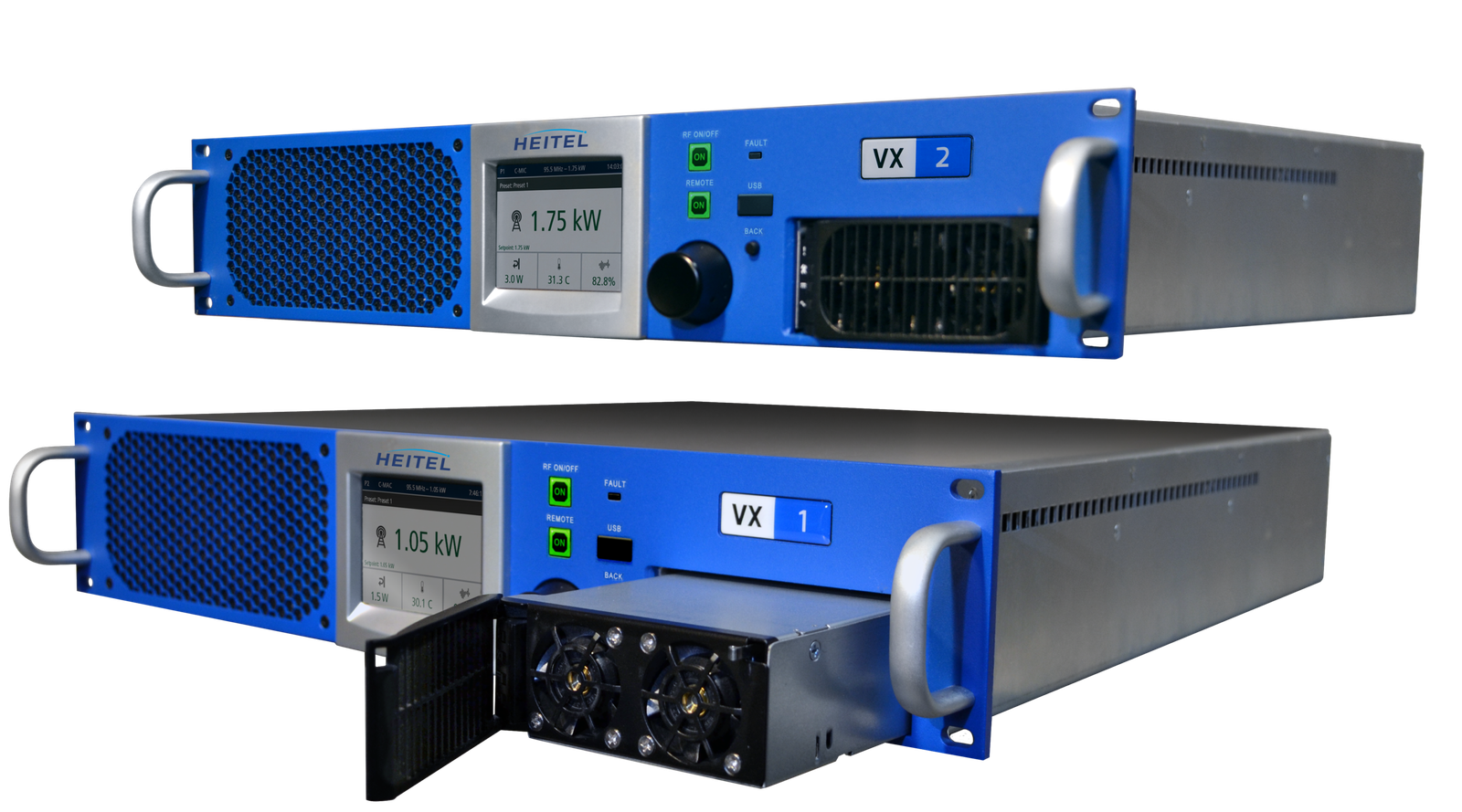

VX Series.
Professional FM transmitters designed for low-to-medium power broadcasting applications, combining compact architecture, high efficiency and serviceability.
Engineered for broadcast.
Compact solid-state FM transmitters with integrated control, remote monitoring and practical serviceability for professional broadcast installations.
Remote Control
HTML5 AUI for desktop, tablet and smartphone with meters, alarms and operating data.
Serviceability

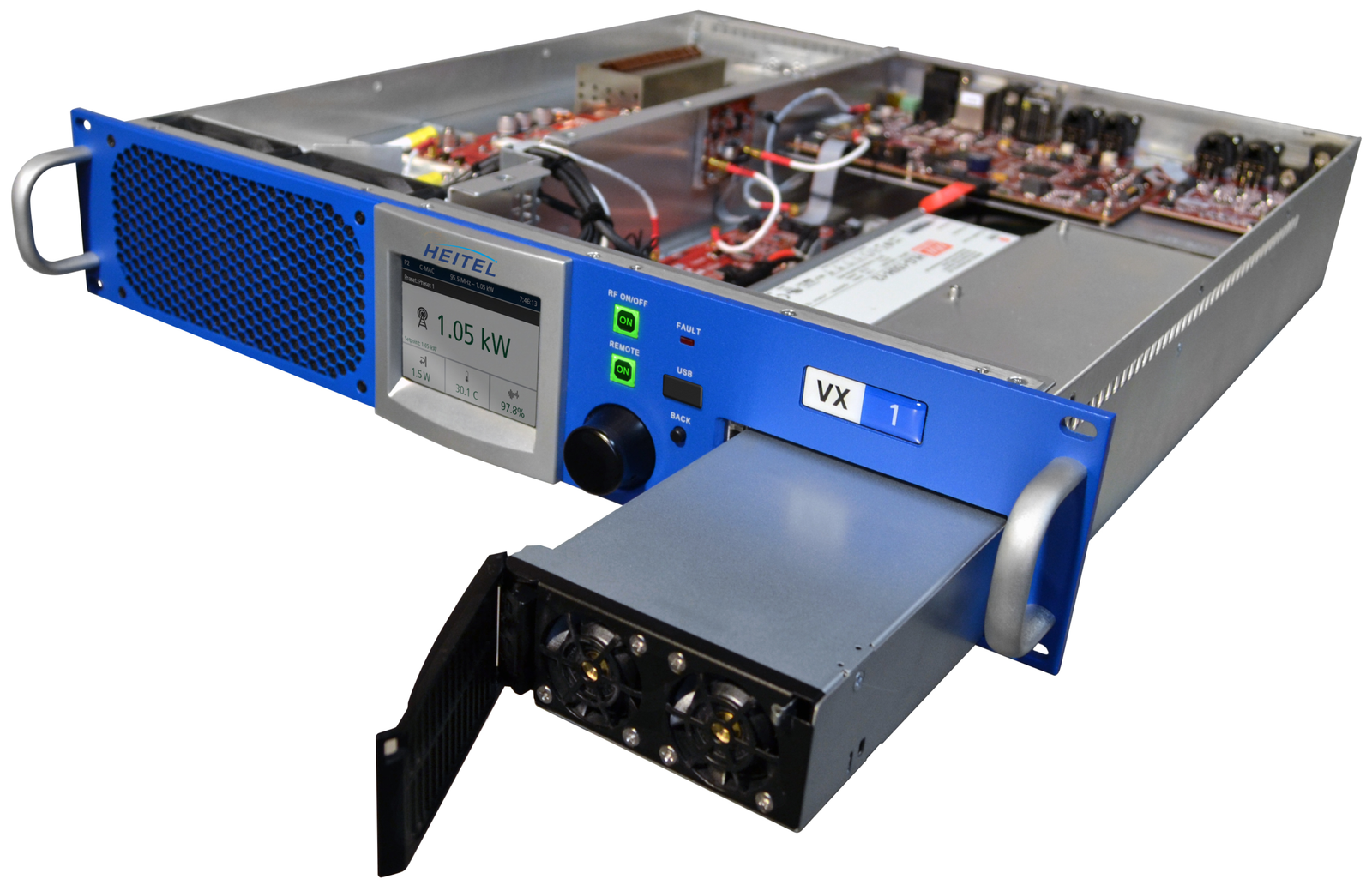

Solderless PA replacement, hot-swappable PA power supply and washable air filter.
Redundancy
Automatic audio failover with main/standby and N+1 configuration support.
Local Interface
3.5″ color TFT display, rotary navigation, dedicated controls and USB connectivity.
| Model | VX150 | VX300 | VX600 | VX1 | VX1.5 | VX2 |
|---|---|---|---|---|---|---|
| Rated Power | 150 W | 300 W | 600 W | 1 kW | 1.5 kW | 2 kW |
| Output Range | 15–165 W | 30–330 W | 60–660 W | 100–1100 W | 150–1650 W | 200–2100 W |
| Power Amplifiers | 1 | 1 | 1 | 1 | 2 | 2 |
VX150–VX2 Specification Sheet
Need help selecting the right VX model?
Our team can help determine the right transmitter power and configuration for your FM broadcasting requirements.
